PBL 100

Wire Link Belts

  • Pitch of Spirals: from 4 to 10 mm
  • Distance between centers of cross members: from 4 to 15 mm
  • Ø Cross Members: from 1,5 to 4 mm
  • Ø Spiral Wire: from 1 to 2,7 mm
  • Belt Width: from 200 to 1000 mm
  • Height Lateral Plates: from 5 to 70 mm

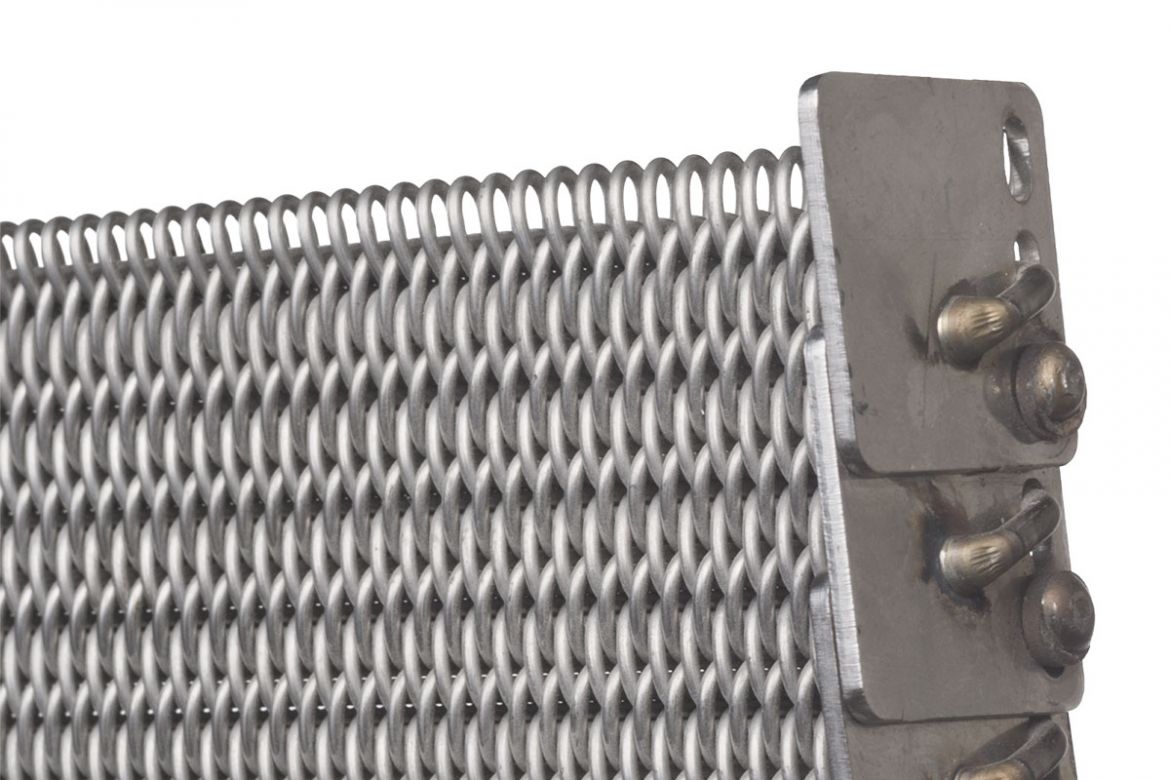

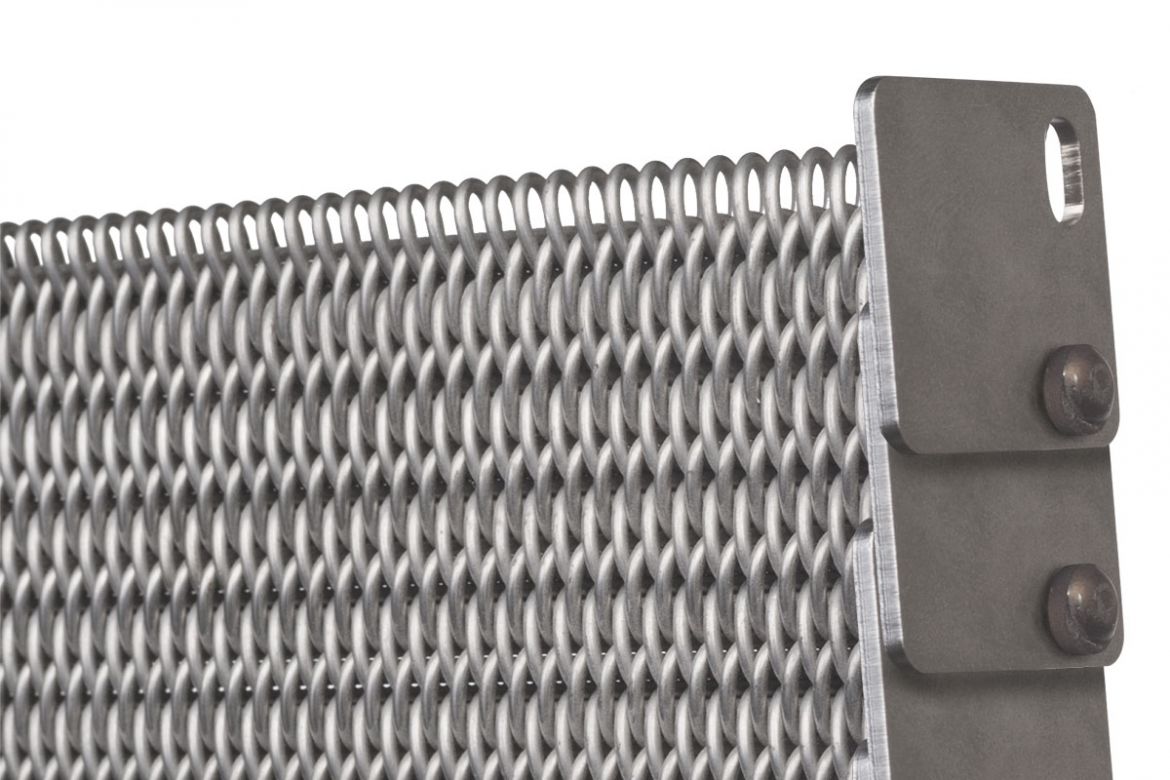

BELT WITH LATERAL PLATES

Belt with lateral plastes made from left and right alternately woven spirals with straight cross members and steel lateral plates. The cross member ends are welded to the washers.

APPLICATIONS:

  • Heat treatment
  • High temperature ovens
  • Sintering
  • etc.
