PBL 105
Wire Link Belts
- Pitch of Spirals: from 4 to 10 mm
- Distance between centers of cross members: from 4 to 15 mm
- Ø Cross Members: from 1,5 to 4 mm
- Ø Spiral Wire: from 1 to 2,7 mm
- Belt Width: from 200 to 1000 mm
- Height Lateral Plates: from 5 to 70 mm

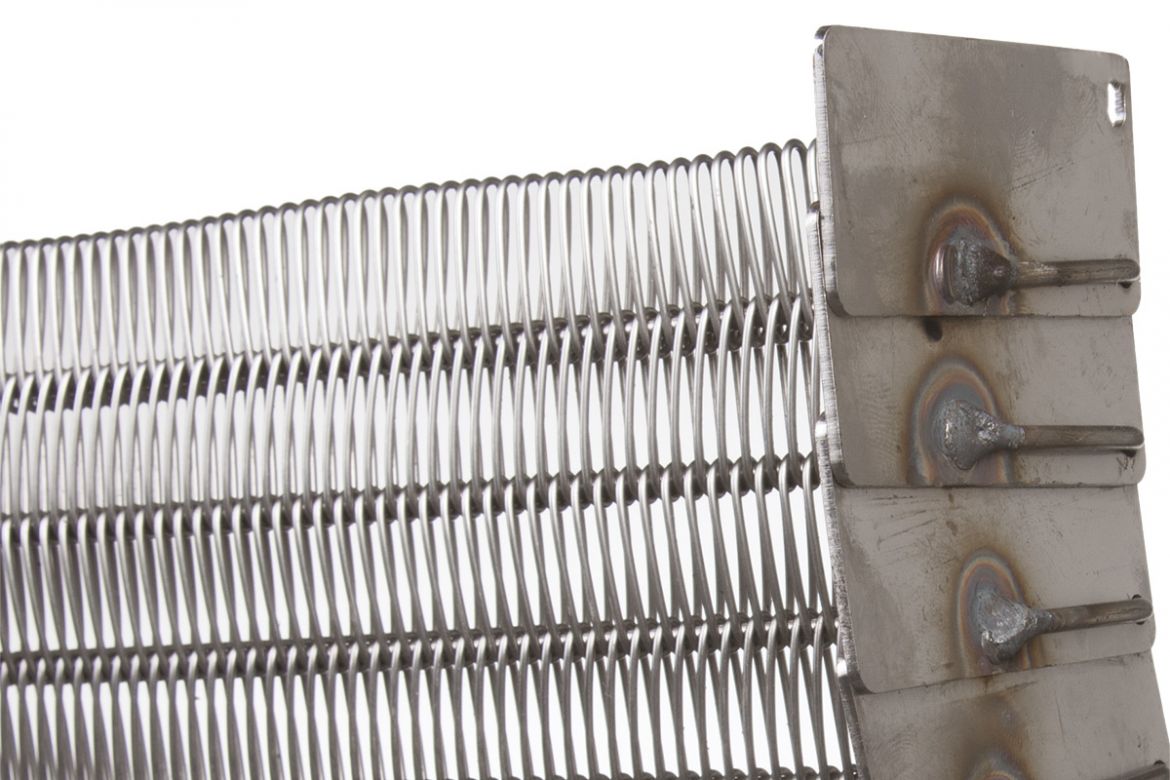

BELT WITH LATERAL PLATES
Belt with lateral plates made from left and right alternately woven spirals with straight cross members and steel lateral plates. The cross member ends are bent and welded to the lateral plates.
APPLICATIONS:
- Heat treatment
- High temperature ovens
- Sintering
- etc.
